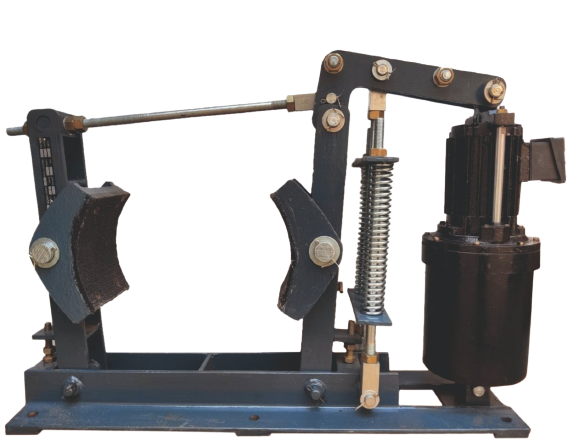

Thruster Shoe Brake-4_image

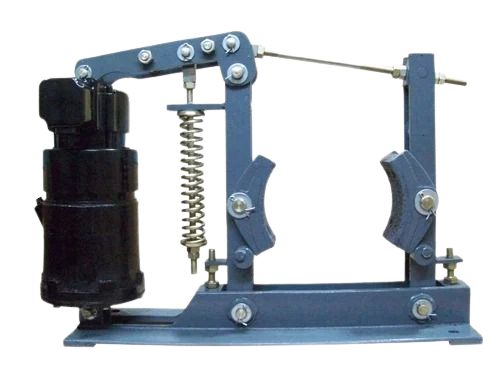

Thruster Shoe Brake-5_image
Thruster Shoe Brake-6_image

Thruster Shoe Brake

Thruster Shoe Brake

Get a Quote For Thruster Shoe Brake

Thruster Shoe Brake Details :

Minimum Order Quantity 1 Piece
Drum Diameter 100 to 600 MM
Power 415 V AC 3-Phase +/-10%, 50Hz. +/-5%
Model Name/Number Size OR Model : 18, 34, 46, 68, 114
Country of Origin Made in India
Brand Stallion



Stallion :

We are Ahmedabad (Guj.-INDIA) based ISO 9001 : 2015 and CE approved “Manufacturing Company” And Serve in market since 20 Years

We are operate in market with “Stallion”  brand

Thruster Shoe Brake Manufacturer :

  • Thruster Shoe Brake Manufacturer as In-House Production for our Stallion Brand Motor
  • We are known for manufacturing one of the widest range of Brake motor, AC brake motor, Thruster Shoe Brake, AC Brake, DC Brake in the India, And our plant established in CTM - Ahmedabad - Gujarat

Basic of Thruster Shoe Brake :

The Thruster Shoe carries the CI block for High Friction applications, When the brake is applied the shoe moves & presses the CI block towards to rotating element (Drum, Etc.) & applied braking effort with Electric Thruster phenomena

Product Range - Thruster Shoe Brakes :

  • Size OR Model : 18, 34, 46, 68, 114
  • Drum Dia. (MM) : 100 to 600
  • Torque (Kg.M.) : 6 to 580
  • Thruster (Kg.) : 18 to 114

Operating Conditions :

  • Operating Voltage : 415 V AC (+/- 10%)
  • Supply Phase : 3 Phase
  • Operating Frequency : 50 Hz. (+/- 5%)

Features :

  • Uncompromised quality
  • Instant stop
  • Desired place stop
  • Dust Protecting Can for Hydraulic
  • Quick service
  • Special liner as Thruster application
  • Special bonding solution for liner
  • Maintenance free design
  • Safe & reliable
  • Easy mounting
  • Quick response time
  • Adjustable spring tension
  • Insulation class "F"
  • Long life during the brake life-span
  • Minimal noise level to noiseless model
  • Easy air-gap setting
  • Rust protection
  • Protection range as IP 44 to IP 55
  • Coil with stand capacity upto the temp. of 155 °C

Selection Key (According to Torque) :

  • Torque Nm. = 9550 x (Motor KW / RPM) x Safety Factor

Safety Factor :

  • Normal Braking : 1.6 to 2 SF
  • Hoisting : Min. 2.5 SF
  • Hoisting : Max. 3 SF
  • Large Application : 4 SF

Uses :

  • These type of Electromagnetic Thruster Shoe Brakes are widely used in Hoisting, Cranes, Whinches, Elevators, Goods Lift, Etc. Where application have must required braking/stopping of moving parts

Application :

  • All type of brake motors
  • Hoisting
  • Crane
  • Material Handling Equipment
  • Goods Lift Or Elevator
  • Industrial Robotics
  • Storage Systems
  • All Engineering Industries
  • Heavy Machinery Industries
  • Wood Working Machineries
  • Automation Gates
  • Industrial Type Presses
  • Marble & Granite Industries
  • Steel Industries
  • Defence Equipments
  • Printing Industries
  • Tire Industries
  • Textile Industries
  • Other as all type of equipments, Which have required braking/stopping of moving parts

Important :

  • Requires X'mer Oil to be filled in the thruster cylinder
  • For, Vertical mounting application - Contact to us
  • For, VFD application - Contact to us

Request
Callback




Additional Information:

  • Item Code: STLOTH11
  • Production Capacity: 250 Piece Per Month
  • Delivery Time: As Per Customer Requirement / Ready To Stock
  • Packaging Details: Avialable In PVC Wrapping / Corrugated Box
